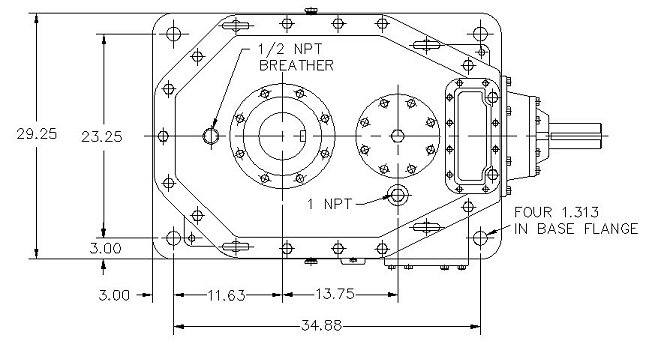

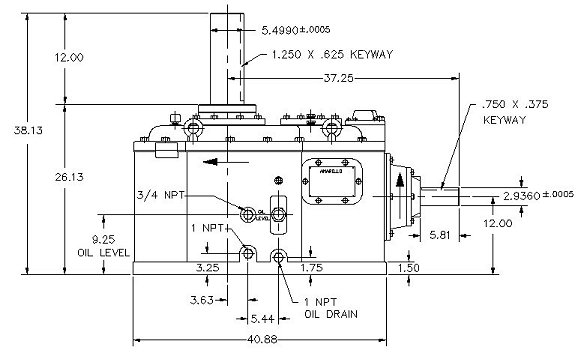

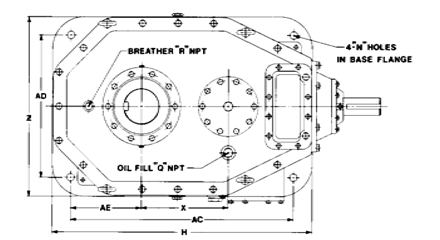

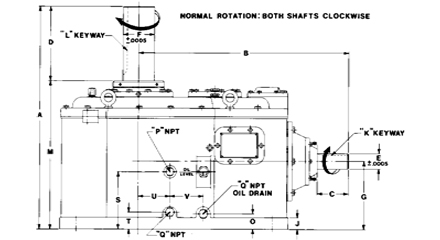

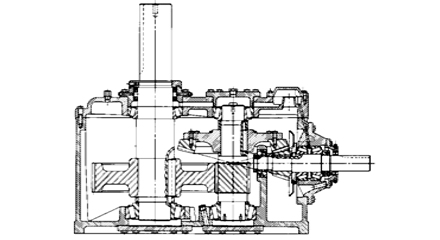

CTD-1713-S

This is the standard right angle, double reduction gearbox. This gearbox is good for a maximum rating of 392 HP. The CTD-1713 gearbox is available with custom input and output shafts as well as many other options.

Brand New
In-Stock Price
$37,336.32
  • Technical Information
  • Maintenance Manual
  • $2,361.32 Electric Oil Pump
  • $1,847.56 Non-Reverse
  • $1,620.32 Mechanical Oil Pump
  • $918.84 Oil Heater and Thermostat
  • $829.92 Pressure Switch
  • $820.04 Oil Filter
  • $652.08 Oil Level Switch
  • $424.84 Export Box
  • $98.80 304S.S. Ball Valve
